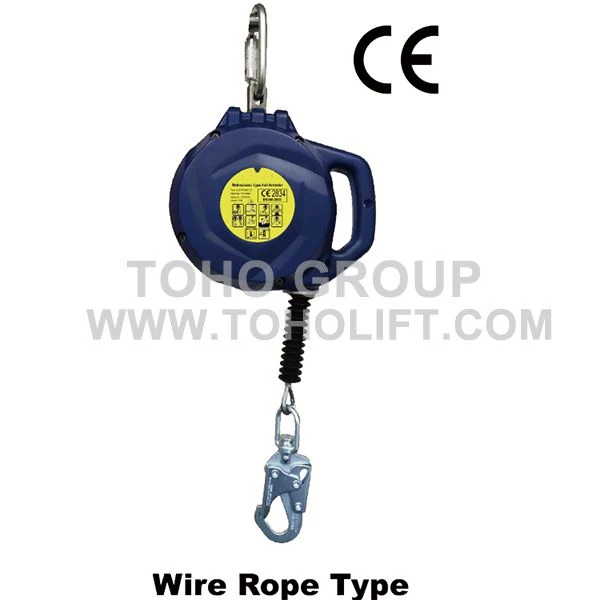

Retractable Fall Arrester For Working At Heights
The retractable fall arrester for working at heights is one type of personal fall protection systems (EN363), can effectively eliminates tripping hazards while the inertia-locking mechanism arrests a fall within inches of activation.
Most of our fall protection arrester is CE certified and meet EN standard EN360-2002 .
Retractable Type Fall Arresters are applicable for environment where a combination of worker mobility and fall protection is required.
 | Details |
Model: TH-RT6M-CE、TH-RT10M-CE、TH-RT15M-CE/TH-RT20M-CE Single leg steel wire rope type Retractable type fall arrester EN360-2002 Type: TH-RT6M-CE、TH-RT10M-CE、TH-RT15M-CE/TH-RT20M-CE Name: 6m/10m/15m/20m Retractable type Fall Arrester Φ5.00 mm stainless steel wire rope Length: 6m/10m/15m/20m Assembly strength: 12KN Wire Rope Strength: 18KN |
|
The retractable fall arrester for working at heights is one type of personal fall protection systems (EN363), can effectively eliminates tripping hazards while the inertia-locking mechanism arrests a fall within inches of activation. Most of our fall protection arrester is CE certified and meet EN standard EN360-2002 .
Retractable Type Fall Arresters are applicable for environment where a combination of worker mobility and fall protection is required.
| Features |
Exquisite appearance, double rotation, safer use
Lock safe and reliable, double - tooth design, double safety
Double-tooth design, lock safe and reliable, double safety. We can meet the 1000 circles locking tested. Locking Pawl is sealed and hidden inside the reel seat, so the locking performance of the product will not be affected by dust, foreign body or extrusion of internal parts during the locking operation.
Double power spring strip drive, long life
Our SRL use double power spring strip drive, so that the retraction force is even and stable, and we use the power spring material form Korea, we can meet 10000 circles life;
Light weight: the enclosure of the retractable fall arrester is made of high strength PE, the diameter 5mm stainless steel wire rope and selfloack snap hook contribute to the single leg. All these material are light in weight but high in strength.
Higher tensile strength
This design bearing bracket adopts high quality steel plate precision stamping forming, the whole group strength is more than 15kN, the steel wire rope is made of ￠5mm stainless steel super soft aviation steel wire rope, the steel wire rope structure is made of 7 x19 wires, the maximum strength can reach more than 18kN, and the SRL assembly strength can meet 15kN.
| Applications |
| Quality Control |
From raw material control to production process control to finished product testing control, we strictly follow the quality management system. Our factory is ISO9001:2015, ISO14001 and ISO45001 certified. Static strength test and Dynamic performance test for our products are conducted according to EN 364. We will do bending, hardness, Salt Spray Corrosion-resistance and tensile strength test for hardware, such as selflock carabiner, locking paul, and snap hook of the retractable fall arrester, to ensure its quality and your safety. For the webbing, we will do Wear-Resistance Test, UV lamp test and Flame-Resistance test, etc.
